Stainless steel checkered plate
- Standard：ASTM A 240 /ASME SA240
- Material：aisi304
- Surface：NO.1/1D
- Techinque：Hot rolled
304 Stainless Steel Perforated Plate

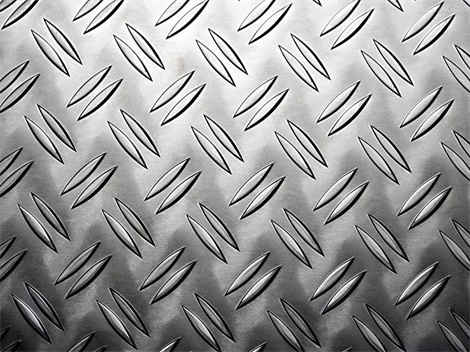

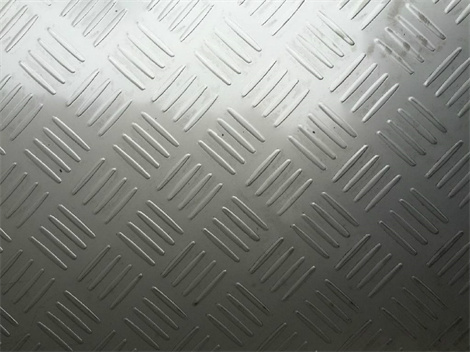

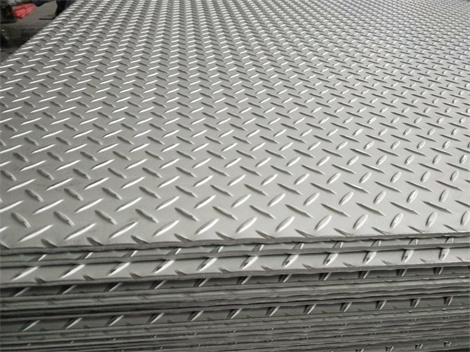

Checker plate is a flat metal sheet that has raised ellipse shape relief on one face to improve grip and reduce accidents which makes it a popular choice for use on ramps, walkways, stairs, and the interior of commercial vehicles. In recent years it has become popular in shopfitting and interior design applications due to its interesting surface finish.
Checker plate is also often referred to as durbar plate, diamond plate, or Positive Grip Pattern (PGP) floor plate. The plate has a flat face underside for securing to floors and other surfaces.
Allin Metal stocks are manufactured from 304 and 316grade stainless steel which has good corrosion resistance and excellent weldability properties. and we also supply aluminium treadbrite plate which is lighter in weight than steel, and mild steel checker plate which offers a similar strength to stainless-steel but can be more easily cut and welded.
Specification From Allin Metal:
| Product name | Stainless steel checkered plate (ASTM A 240 /ASME SA240) |
| Material | 200 series:201 202 300 series:301 302 303 304 304L 309 309S 310 316 316L 321 etc 400 series:410 420 430 440 Duplex stainless:2205 2507 etc. |
| Surface | 2B 2D BA(bright annealed) No.1 8K HL(Hair Line) PVC |
| Size | Width:100mm—2000mm ; Length :100-9000mm; Thickness:0.3-10mm |
| Standard Size | 1000*2000mm,1219*2438mm,1219*3048mm,1219mm*4000mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Standard | AISI, ASTM, GB,BS,EN,JIS,DIN |
| Application | Kitchenware, home appliances, construction decoration, stairs, refrigerated container,burner parts, exhaust parts of auto |
| Feature | Representative type of Ferrite stainless steel, with magnetic Good cost performance, price stability Good shaping capability, weld bending capability, high thermal conductivity, low thermal expansion |
| Advantages | Strong corrosion and decorative effect |
| TradeTerms | FOB, CFR, CIF, EXW. |
| Payment Terms | T/T,L/C at sight |
Different Surface Finished：
| Hairline: | Oil Polished Hairline finish, with bright and delicate lines on the surface. |
| Satin NO.4: | Oil Polished, with smooth lines, the surface looks like a piece of silk. |
| Mirror: | Bright and symmetrical, like a mirror, usually used for the supper decoration inside. |
| Etching: | The surface shows different patterns, and deep and straight etching lines make the design more elegant. |
| Ti-plated: | Rich colors, make the surface bright and shineand without color difference, color change or fade problems. |
| Vibration: | Special surface with non-directional circle lines on the base of 2B, BA or Mirror base. |
| Bead Blasted: | The surface presents pearl-silver luster, elegant, could be used on new building material. |
| Embossed: | Showing different patterns on the surface which are made by different pressure which is different fromEtching. |
| Artsheet: | The surface is composed of more than three different finishes, it makes our sheet more gorgeous andbeautiful. |
| Antique: | Long use lifewith high oxidation corrosion resistance, Elegant and generous with Bronze and Coppercolor combined with HL and HL Etched process. |
| Anti-fingerprint: | The coating to avoid the fingerprint on the surface of the above artworks. |
SS 304/304L sheet Chemical Composition and Mechanical properties:
| Grade | C % | Mn. % | P % | S % | Si % | Cr % | Ni % |
| 304 | 0.08 max. | 2.00 max. | 0.045 max. | 0.03 max. | 1.00 max. | 18.0-20.0 | 8.0-10.0 |
| 304L | 0.03 max. | 2.00 max. | 0.045 max. | 0.03 max. | 1.00 max. | 18-20 | 8.0-12.0 |
| 304H | 0.04-0.10 | 2.00 max. | 0.045 max. | 0.03 max. | 1.00 max. | 18-20 | 8.0-12.0 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
Package & Delivery:

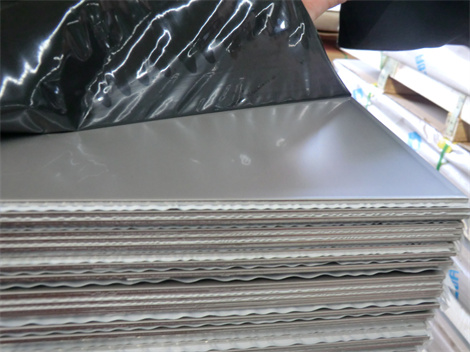

Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required.
Packing and Transportation
1) less than 6m loaded by 20ft container, 12m loaded by 40ft container
3) Big quantity loaded by Bulk Vessel
Container Size：
20ft GP:5.8m(L)*2.35m(W)*2.39m(H) 26CBM
40ft GP:11.8m(L)*2.35m(W)*2.39m(H) 56CBM
40ft HQ:11.8m(L)*2.35m(W)*2.69m(H) 65CBM
