316/316L Stainless Steel Sheet
- Standard：ASTM A240
- Material：316/316L
- Surface：2B
- Techinque：COLD ROLLED
Standard Specifications of stainless steel sheet: Standard: ASTM A240 / ASME SA240 Thickness: 0.3 mm to 100 mm Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc ……
Standard Specifications of stainless steel sheet:
| Standard: | ASTM A240 / ASME SA240 |
| Thickness: | 0.3 mm to 100 mm |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface: | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Brush, etching, SATIN (Met with Plastic Coated) etc. |
| Finish: | Hot rolled plate (HR), Cold rolled sheet (CR) |
| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats. |
Stainless Steel 316 / 316L sheet Equivalent Grades:
| TYPE | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316 / 316L sheet Chemical Composition & Mechanical properties:
| Type | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Type | Tensile Strength,ksi, min | Yield Strength,ksi,min | Elongation,%min | Hardness,Max. |
| 316/316L | 75 | 30 | 40 | 217 HBW or 95 HRB |
Allin Metal Quality Control & packing:
Mill Test Certificate is supplied with shipment, Third Part Inspection is acceptable.

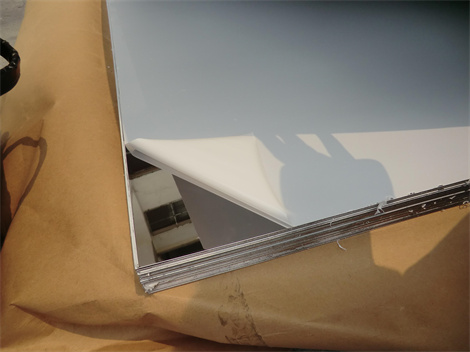

PVC Film: two layers (the contact layer is France brand NOVACEL 70μm PVC film can protect the sheet surface well, no glue left; upper layer is China brand), can be customized according to customer’s requirements.
High quality wooden box: Fumigated pine wooden box, suitable for long distance transportation by land, by sea and by air.

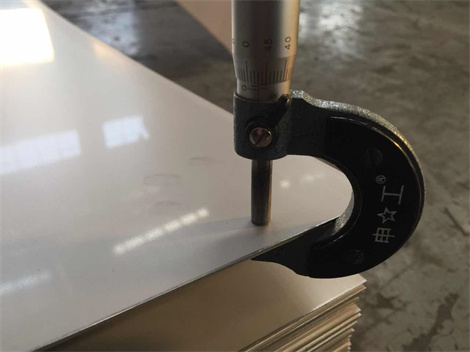

ASTM A480hot rolled sheet/coil thickness tolerance.
| thcikness，in.[mm] | Deviation, allowed for the specified width | |
| （w）,±，in.[mm] | ||
| w≤60[1525] | w＞60[1525] | |
| 0.072[1.83] | 0.006[0.15] | 0.009[0.22] |
| ＞0.072[1.83]-0.083[2.11] | 0.007[0.18] | 0.010[0.25] |
| ＞0.083[2.11]-0.098[2.49] | 0.008[0.20] | 0.011[0.27] |
| ＞0.098[2.49]-0.114[2.90] | 0.009[0.23] | 0.012[0.30] |
| ＞0.114[2.90]-0.130[3.30] | 0.011[0.27] | 0.013[0.33] |
| ＞0.130[3.30]-0.145[3.68] | 0.012[0.30] | 0.013[0.33] |
| ＞0.145[3.68]-0.1875[4.76] | 0.013[0.33] | 0.014[0.35] |
| ＞0.1875[4.76]-0.250[6.35] | -0.010[0.25],+0.020[0.50] | -0.010[0.25],+0.020[0.50] |
| ＞0.250[6.35]-0.3125[7.94] | -0.010[0.25],+0.022[0.55] | -0.010[0.25],+0.022[0.55] |
| ＞0.3125[7.94] | -0.010[0.25],+0.030[0.75] | -0.010[0.25],+0.030[0.75] |
ASTM A480cold rolled sheet/plate thickness tolerance
| thcikness ，in.[mm] | Deviation, allowed for the specified width | ||
| （w）,±，in.[mm] | |||
| W≤40[1000] | 40[1000]＜w≤50[1300] | 50[1300]＜w≤84[2100] | |
| 0.012[0.30] | 0.001[0.030] | – | – |
| 0.016[0.40] | 0.0015[0.04] | 0.0015[0.04] | – |
| 0.020[0.50] | 0.0015[0.04] | 0.0015[0.04] | – |
| 0.024[0.60] | 0.002[0.05] | 0.002[0.05] | – |
| 0.032[0.80] | 0.002[0.05] | 0.002[0.05] | – |
| 0.040[1.00] | 0.0025[0.06] | 0.0025[0.06] | 0.003[0.08] |
| 0.047[1.20] | 0.003[0.08] | 0.003[0.08] | 0.003[0.08] |
| 0.059[1.50] | 0.003[0.08] | 0.003[0.08] | 0.004[0.10] |
| 0.079[2.00] | 0.004[0.10] | 0.004[0.10] | 0.0045[0.11] |
| 0.098[2.50] | 0.004[0.10] | 0.004[0.10] | 0.005[0.13] |
| 0.118[3.00] | 0.005[0.13] | 0.005[0.13] | 0.006[0.15] |
| 0.157[4.00] | 0.007[0.17] | 0.007[0.17] | 0.007[0.17] |
| 0.197[5.00] | 0.007[0.17] | 0.007[0.17] | 0.0075[0.19] |
| 0.236[6.00] | 0.007[0.17] | 0.008[0.20] | 0.009[0.23] |
| 0.3125[8.00] | 0.007[0.17] | 0.009[0.23] | 0.010[0.25] |
ASTMA480 hot rolld plate with greater width:
| thcikness (t)，in.[mm] | width(w)，in.[mm] | |||
| w≤84[2134] | 84[2134]＜w≤120[3048] | 120[3048]＜w≤144[3658] | w＞144[3658] | |
| thickness + C，in.[mm] | ||||
| t＜3/16[4.76] | 0.055[1.35] | 0.070[1.78] | – | – |
| 3/16[4.76]≤t＜3/8[9.52] | 0.045[1.14] | 0.050[1.27] | 0.085[2.16] | – |
| 3/8[9.52]≤t＜3/4[19.05] | 0.055[1.40] | 0.060[1.52] | 0.085[2.16] | 0.090[2.29] |
| 3/4[19.05]≤t＜1[25.40] | 0.060[1.52] | 0.065[1.65] | 0.085[2.16] | 0.100[2.54] |
| 1[25.40]≤t＜2[50.80] | 0.070[1.78] | 0.075[1.90] | 0.095[2.41] | 0.115[2.92] |
| 2[50.80]≤t＜3[76.20] | 0.125[3.20] | 0.150[3.80] | 0.175[4.45] | 0.200[5.08] |
| 3[76.20]≤t＜4[101.6] | 0.150[3.81] | 0.160[4.06] | 0.200[5.08] | 0.225[5.72] |
| 4[101.6]≤t＜6[152.4] | 0.180[4.57] | 0.200[5.08] | 0.335[8.50] | 0.355[9.02] |
| 6[152.4]≤t＜8[203.2] | 0.235[6.00] | 0.255[6.48] | 0.355[9.02] | 0.435[11.0] |
| 8[203.2]≤t＜10[254.0] | 0.315[8.00] | 0.335[8.50] | 0.435[11.0] | 0.550[14.0] |
